صفحه اصلی > محصولات > غرفه اتاق تمیز > Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth

Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth

جزئیات محصول

محل منبع: دونگوان ، گوانگدونگ ، چین

نام تجاری: YANING

گواهی: CE/ISO

شماره مدل: YN-CLB-01

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 ست

قیمت: $4000-6800/set

جزئیات بسته بندی: تخته سه لا

زمان تحویل: 25 ~ 25 روز بر اساس کمیت

شرایط پرداخت: T/T ، Western Union ، MoneyGram

قابلیت ارائه: 1000 مجموعه در ماه

بهترین قیمت را دریافت کنید
الان چت کن
جزئیات محصول
برجسته کردن:

Hard wall clean booth,Class 100 clean room,Positive pressure cleanroom contractors

,

Class 100 clean room

,

Positive pressure cleanroom contractors

قاب:
آلومینیوم/سوس
دیوار:
پلکسی گلاس
طبقه:
100
کارایی:
99.999 ٪
جعبه کنترل:
1 ست
خدمات پس از فروش ارائه شده است:
مهندسان موجود در ماشین آلات خدمات در خارج از کشور
قاب:
آلومینیوم/سوس
دیوار:
پلکسی گلاس
طبقه:
100
کارایی:
99.999 ٪
جعبه کنترل:
1 ست
خدمات پس از فروش ارائه شده است:
مهندسان موجود در ماشین آلات خدمات در خارج از کشور
توضیحات محصول
Products Description

Clean room is a local high clean environment can provide air purification equipment. It is the most convenient to establish a simple clean room, clean shedmainly by the box, fan, early high efficiency air filter, damping layer, lamps and other components, shell spray. The product can be suspended, but also ground support, compact structure, easy to use. Can be used alone, but a number of connections to form a band clean area. At the same time can be in the general level of clean room in some area need high cleanliness of the place to do some local increase to reduce costs.

Fan from the top of the FFU inhalation of air, the initial effect of the filter, high efficiency filter, filtered clean air in the entire wind surface to 0.45m/s ± 20% of the wind speed sent to the clean shed. The formation of the current layer, so that clean air flow was vertical one-way flow, thus ensuring the work area required cleanliness.

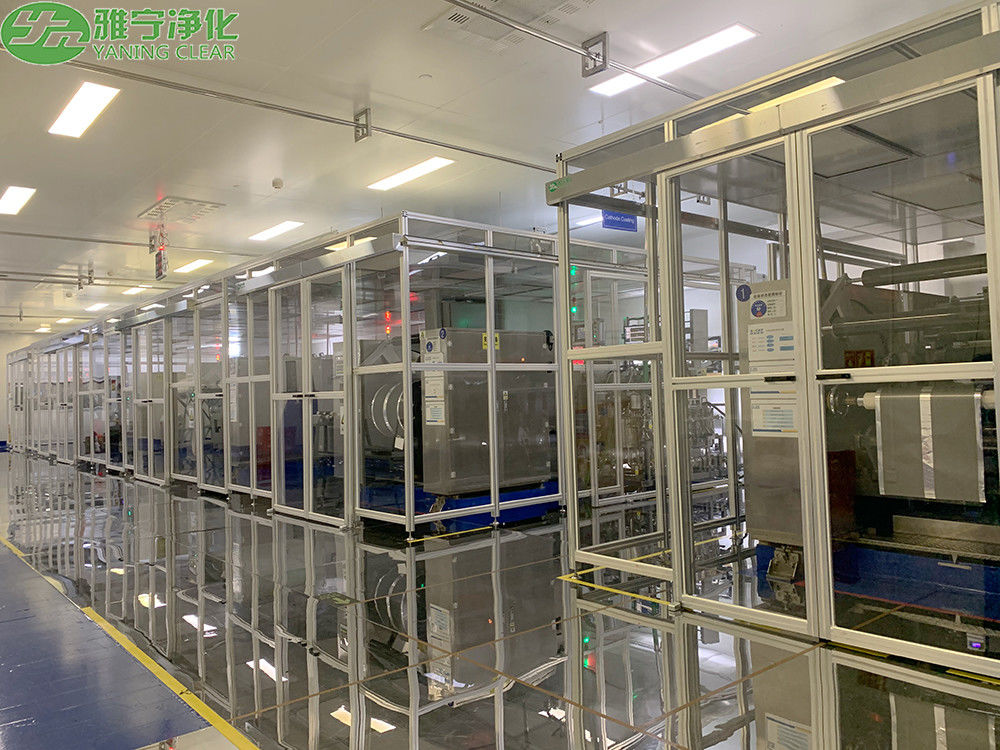

Product Display

Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 0
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 1
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 2
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 3

Product Paramenters


Model

YN-CS-23B

YN-CS-34A

YN-CS-68C

External dimension

2100*3100*2590

3100*4100*2590

6100*8100*2590

Work area dimension

2000*3000*2200

3000*4000*1900

6000*8000*2200

Cleanliness

10000Class(ISO6)

10000Class(ISO7)

10000Class(ISO8)

Air velocity

0.3-0.5m/s

0.3-0.5m/s

0.3-0.5m/s

Noise

≤65dB

≤65dB

≤65dB

Vibration Half Peak

≤5um

≤5um

≤5um

Light

40w*2

40W*4

40W*8

Power supply

220V/50Hz

220V/50Hz

220V/50Hz

Material

Framework: epoxy power coated steel/stainless/Aluminum
Wall: Anti-static strip curtain/soft air curtain/Plexiglas

表格宽度最宽为750,超过750的部分及内容均无法展示

Features

1. Can be used alone or in combination.

2. Compared with civil-built or assembly-type 100 clean rooms, less investment, quicker results, easier installation and lower operating costs.

3. Modular structure, easy to improve cleanliness level, strong scalability, and high value of reuse

4. Easy to move (can be installed universal wheel)
